What Is an XLPE PVC Aluminum Power Cable and Why Is It Widely Used in Modern Power Systems

An XLPE PVC Aluminum Power Cable is a widely used electrical power transmission solution that combines cross-linked polyethylene (XLPE) insulation, polyvinyl chloride (PVC) outer sheathing, and aluminum conductors. This cable type is favored for its excellent electrical performance, thermal resistance, mechanical durability, and cost-effectiveness. In this in-depth guide, we explore its structure, advantages, applications, specifications, installation considerations, and how it compares with alternative power cable options.

Table of Contents

• 1. What Is an XLPE PVC Aluminum Power Cable?
• 2. Structure and Key Components Explained
• 3. Why XLPE and PVC Are Used Together
• 4. Technical Specifications and Standards
• 5. Advantages of XLPE PVC Aluminum Power Cables
• 6. Aluminum vs Copper Power Cables
• 7. Typical Applications and Use Cases
• 8. Installation and Safety Considerations
• 9. How to Choose the Right Cable for Your Project
• 10. Frequently Asked Questions (FAQ)

1. What Is an XLPE PVC Aluminum Power Cable?

An XLPE PVC Aluminum Power Cable is an electrical cable designed for medium- and low-voltage power transmission. It uses aluminum as the conductor material, cross-linked polyethylene (XLPE) as the primary insulation layer, and PVC as the outer protective sheath.

This combination allows the cable to deliver reliable power transmission while maintaining high thermal resistance, mechanical protection, and long service life. Manufacturers like Yilan produce these cables to meet international standards and demanding industrial requirements.

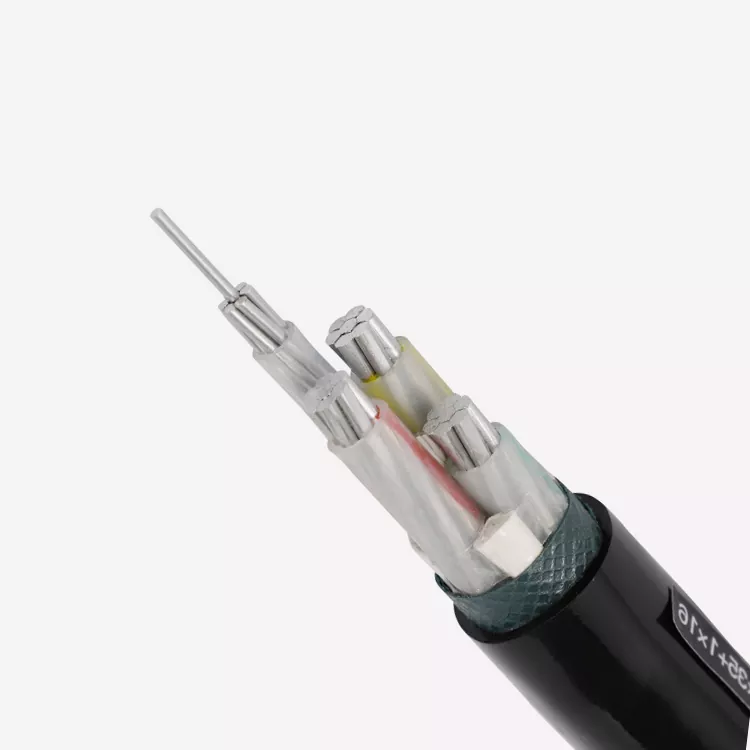

2. Structure and Key Components Explained

The cable typically consists of the following layers:

• Aluminum Conductor – Lightweight, cost-effective, and suitable for long-distance power transmission
• XLPE Insulation – Provides excellent electrical insulation and high temperature resistance
• Inner Sheath (Optional) – Adds structural stability
• PVC Outer Sheath – Protects against moisture, chemicals, abrasion, and UV exposure

3. Why XLPE and PVC Are Used Together

The pairing of XLPE insulation with PVC sheathing is intentional and highly effective:

XLPE can withstand operating temperatures up to 90°C continuously and up to 250°C during short-circuit conditions, while PVC adds flexibility and environmental protection.

4. Technical Specifications and Standards

XLPE PVC aluminum power cables are manufactured in compliance with various international standards, depending on the application and market.

5. Advantages of XLPE PVC Aluminum Power Cables

• Lower material cost compared to copper cables
• Excellent thermal and electrical performance
• Reduced weight for easier transportation and installation
• High resistance to corrosion and environmental stress
• Long service life with minimal maintenance

6. Aluminum vs Copper Power Cables

For large-scale power distribution projects, aluminum power cables offer a more economical and practical solution.

7. Typical Applications and Use Cases

• Power distribution networks
• Industrial plants and factories
• Underground power installations
• Commercial buildings
• Renewable energy projects

More product details can be referenced through XLPE PVC Aluminum Power Cable technical overview.

8. Installation and Safety Considerations

Proper installation is essential for long-term performance. Key considerations include:

• Correct bending radius
• Adequate mechanical protection
• Proper termination and jointing
• Compliance with local electrical codes

9. How to Choose the Right Cable for Your Project

When selecting an XLPE PVC aluminum power cable, evaluate:

• Voltage and current requirements
• Installation environment
• Standards and certifications
• Supplier reliability and technical support

Trusted manufacturers like Yilan provide customized solutions based on project-specific requirements.

10. Frequently Asked Questions (FAQ)

Q1: Is XLPE PVC aluminum power cable suitable for underground use?

Yes, it is widely used for underground installations due to its moisture resistance and mechanical strength.

Q2: What is the service life of this cable?

Under proper installation and operating conditions, the service life can exceed 30 years.

Q3: Can aluminum cables replace copper cables?

In many applications, aluminum cables offer a cost-effective and efficient alternative to copper.

Q4: Does XLPE insulation improve safety?

Yes, XLPE provides superior thermal stability and electrical insulation.

If you are looking for reliable, high-performance XLPE PVC aluminum power cable solutions for your project, contact us today to receive expert guidance, competitive pricing, and customized support.
