Copper Conductor PVC Insulated Twisted Pair Shielded Flexible Cable

Yilan Cable factory Our deep understanding of signal integrity makes this customizable, high-quality Copper Conductor PVC Insulated Twisted Pair Shielded Flexible Cable ideal for precision signal connections in industrial automation, security communications and more.

What is Copper Conductor PVC Insulated Twisted Pair Shielded Flexible Cable?

Our RVSP cable, also known as Copper Conductor PVC Insulated Twisted Pair Shielded Flexible Cable, is a high performance cable specifically designed for anti-interference signal transmission. It is not an ordinary power cord, its core mission is to ensure the purity and stability of low voltage, low current analog or digital signals in complex electromagnetic environment. Through its unique structural design, it can effectively suppress noise.

Essential information

Conductor cross-sectional area: common such as 0.5mm², 0.75mm², 1.0mm², 1.5mm², etc.

Number of cores: single core, double core (twisted pair) or multi-core combination.

Shielding mode: aluminum foil shielding, braided shielding or composite shielding can be selected according to interference intensity.

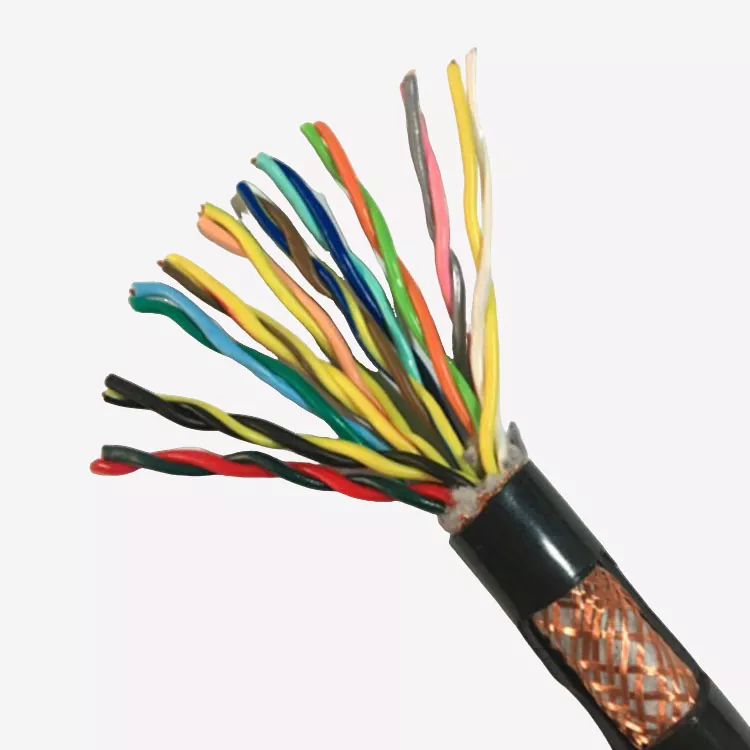

Structural features

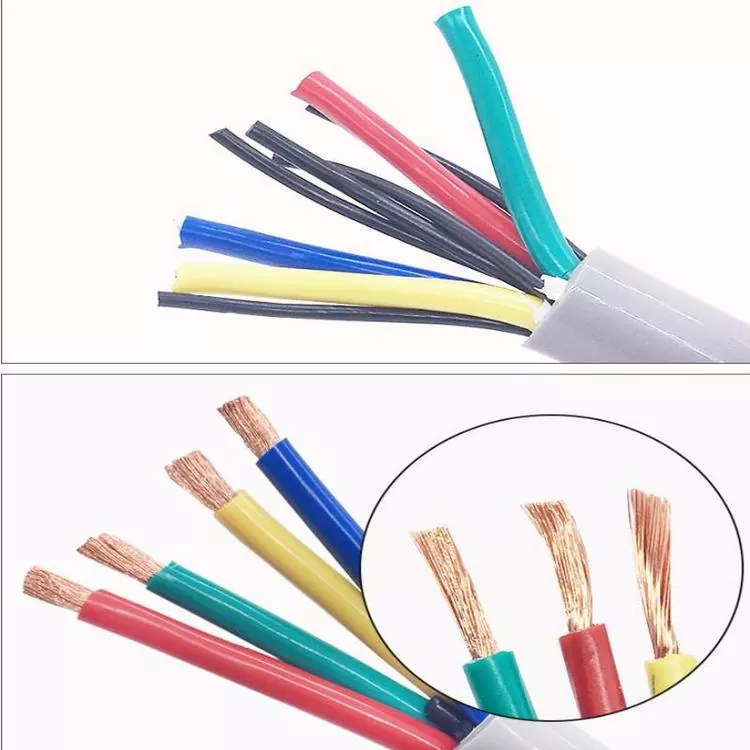

1. Conductor: stranded by multi-strand soft oxygen-free copper wire, which ensures high flexibility and excellent conductivity of the cable, and facilitates flexible wiring inside the equipment or in the cabinet.

2. Insulation and core design: Twisted Pair structure for each pair of cores, which is the first line of defense against interference of Copper Conductor PVC Insulated Twisted Pair Shielded Flexible Cable. Twisted pairs can significantly reduce electromagnetic coupling between pairs and external magnetic interference.

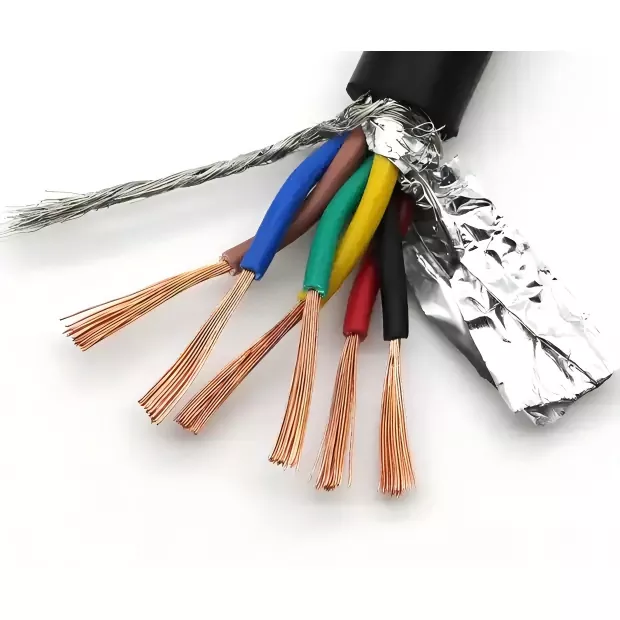

3. Shielding: In the twisted pair, we wrap one or more layers of shielding (such as aluminum foil or copper wire mesh). This layer of "electromagnetic shield" constitutes a second and stronger line of defense, which can efficiently absorb and guide external electromagnetic interference (EMI/RFI) to prevent signal distortion.

4. Sheath: The outermost layer is PVC sheath, which provides mechanical protection, abrasion resistance and certain oil and corrosion resistance for the internal precision structure, and is suitable for various industrial environments.

Key features

1. Anti-interference ability: combined with twisted pair structure and shielding layer, providing double protection, specially designed for complex electromagnetic environment.

2. High flexibility and easy installation: Multi-strand thin copper wire conductor makes Copper Conductor PVC Insulated Twisted Pair Shielded Flexible Cable easy to bend, suitable for installation situations requiring mobile or fixed bending.

3. Environmental adaptability: PVC material provides certain oil resistance and corrosion resistance, meeting the requirements of common industrial environments.

4. Rated voltage: 300/500V, designed for low-voltage signaling equipment.

Application scenarios

1. Industrial automation system: connect PLC, frequency converter, sensor, instrument, transmit key control and feedback signals.

2. Communication and security field: signal connection for surveillance cameras, access control systems, audio broadcasting, data acquisition equipment.

3. Precision equipment: medical equipment, test and measurement instruments and other occasions requiring high shielding performance.
