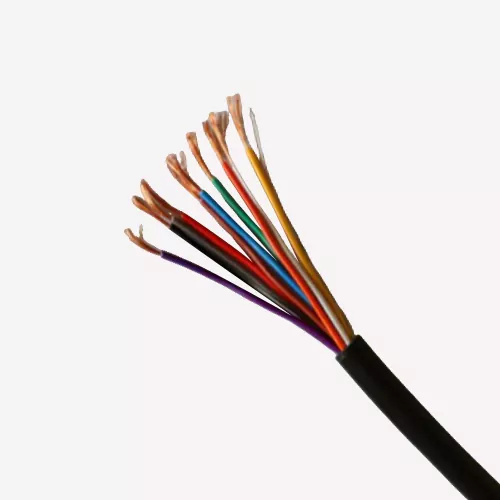

Copper Core PVC Insulated Sheathed Control Cable

As a professional control cable manufacturer, Yilan Cable's Copper Core PVC Insulated Sheathed Control Cable is an economical and practical standard control cable suitable for indoor installation environments requiring relatively fixed requirements. We are committed to providing customers with high quality and competitive price products.

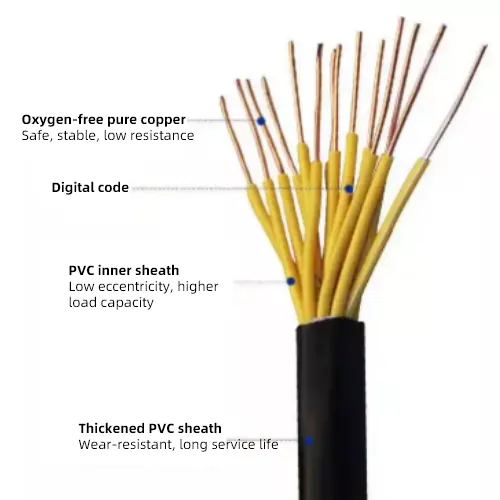

Construction of cable

Conductor: Made of high quality oxygen-free copper to ensure stable conductivity.

Insulation: Each core wire is insulated with PVC material.  PVC insulation layer provides good electrical insulation properties and a certain mechanical strength.

Cabling: Multiple insulated cores are regularly twisted, possibly supplemented by filler materials, to form a round cable core.

Jacket: The outermost extruded polyvinyl chloride (PVC) jacket effectively protects the inner cable core from mechanical damage, chemical corrosion and moisture intrusion.

Common specifications

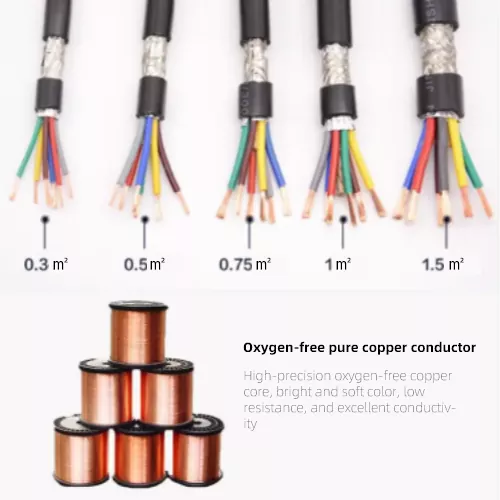

Our customized KVV cables are available from 2 to 61 cores with smaller nominal conductor sections such as 0.75mm², 1.0mm², 1.5mm², 2.5mm², etc.

Product feature

Rated voltage: 450/750 V or 0.6/1 kV

Long-term allowable operating temperature: 70°C. This temperature is determined by PVC material characteristics, and its heat resistance rating is relatively limited.

Installation temperature: laying ambient temperature should not be lower than 0°C, to prevent PVC material brittle cracking.

Flame retardant: Standard KVV cables do not have flame retardant (ZR) or fire resistant (NH) characteristics. If flame retardant function is required, models such as ZR-KVV (flame retardant type) or NH-KVV (fire resistant type) should be selected.

Environmental protection: PVC materials will release toxic smoke containing halogen when burning, corrosive. Therefore, in densely populated or underground facilities and other occasions, it is gradually being replaced by low-smoke halogen-free cables (such as WDZ-KYYJPE).

Mechanical properties: High quality Copper Core PVC Insulated Sheathed Control Cable has a certain tensile strength and wear resistance, suitable for indoor fixed installation. However, it cannot withstand strong mechanical external force (such as direct burial may lead to extrusion damage), and it needs to be protected by means of pipe penetration or cable tray.

Product features

Economical: PVC material cost is low, the manufacturing process is mature, and the overall cost performance is high.

Easy installation: Copper Core PVC Insulated Sheathed Control Cable is flexible and easy to bend and lay.

Corrosion resistance: acid, alkali, oil and other common chemicals have good corrosion resistance.

Mature technology: widely used in the market, procurement and maintenance convenience.

Application area

Copper core PVC insulated PVC sheathed control cable is mainly used in industrial and mining enterprises, energy transportation systems and other occasions, suitable for AC rated voltage 450/750V and below the control, monitoring and protection lines.

Power distribution equipment: connecting electrical instruments and automation equipment.

Control system: used for all kinds of mechanical equipment control loop, transmission control signal.

Signal transmission: such as monitoring system, alarm system signal lines.

Indoor fixed laying: installed in cable tray, conduit or laid along the wall.
