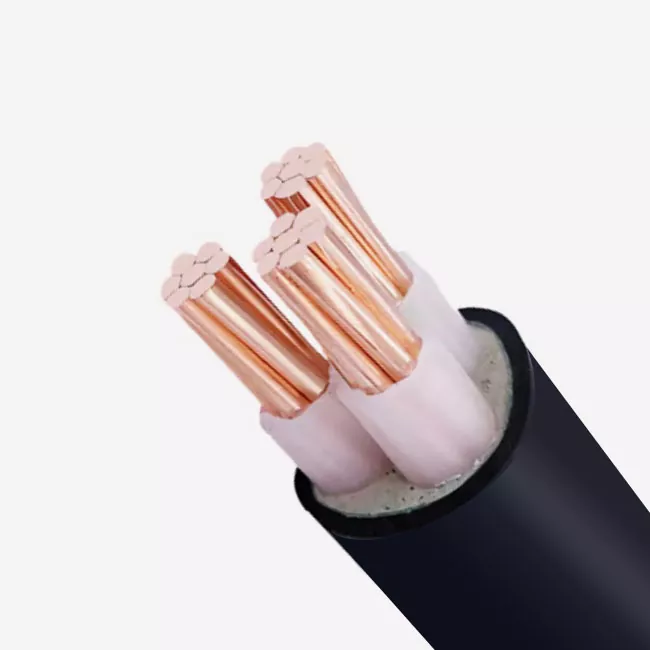

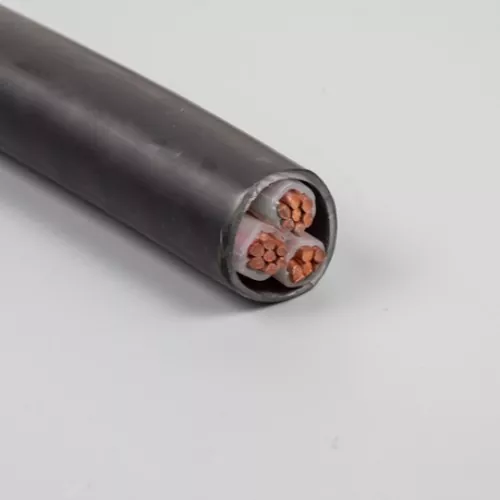

Flame Retardant PVC Sheathed Cable

When fire breaks out, Yilan Cable factory's high performance Flame Retardant PVC Sheathed Cable can extinguish itself near the fire source, preventing the fire from spreading rapidly along the cable line, and gaining valuable time for personnel evacuation and initial fire fighting. It is suitable for fixed wiring situations with high fire safety requirements but no need for cables to be continuously energized in a fire.

ZRVV cable model analysis

ZR: stands for "flame retardant" characteristics.

V: stands for PVC insulation.

V: stands for polyvinyl chloride (PVC) sheath.

ZRVV cable is essentially a flame-retardant enhanced version of standard VV cable designed to limit the spread of fire while also being cost-effective. It does not have the characteristics of fire resistance (i.e. keeping the line intact in case of fire).

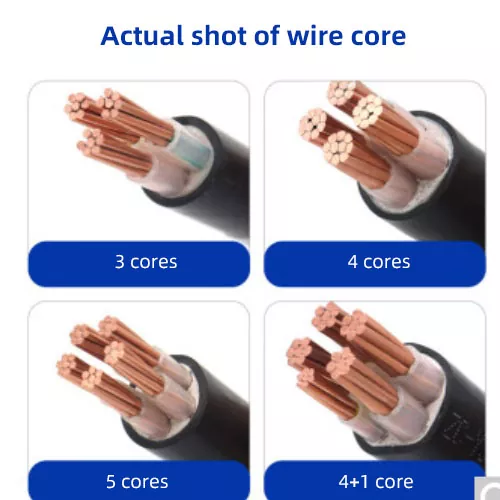

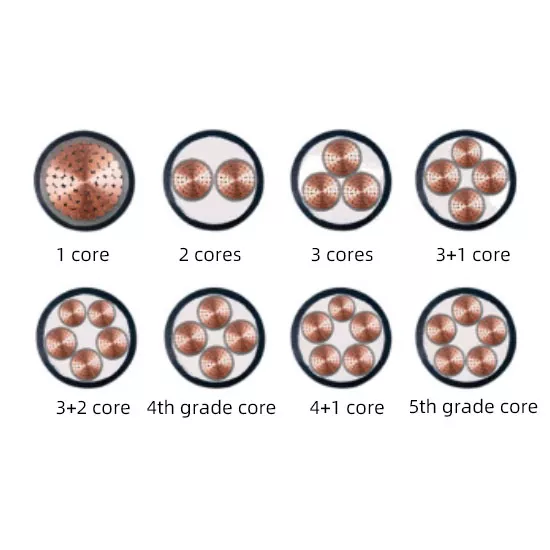

Cable construction

Conductor: optional copper (Cu) or aluminum (Al).

Insulation layer: PVC material added with flame retardant.

Jacket: PVC containing flame retardant components, usually gray or black.

Main Features

Flame retardant performance: in line with GB/T 18380/IEC 60332 standard, can effectively prevent flame spread.

Rated voltage: 0.6/1 kV AC.

Temperature range: long-term working temperature ≤70°C; short-circuit (maximum 5 seconds) conductor temperature ≤160°C.

Halogen characteristics: halogen, combustion may produce smoke and corrosive gases.

Application scenarios

Durable Flame Retardant PVC Sheathed Cable is suitable for fixed laying occasions that require flame retardance but have low requirements for smoke toxicity, such as: conventional power and lighting distribution systems inside buildings; equipment wiring in industrial environments such as factories and workshops; transmission and distribution of fixed facilities such as tunnels and cable trenches.
