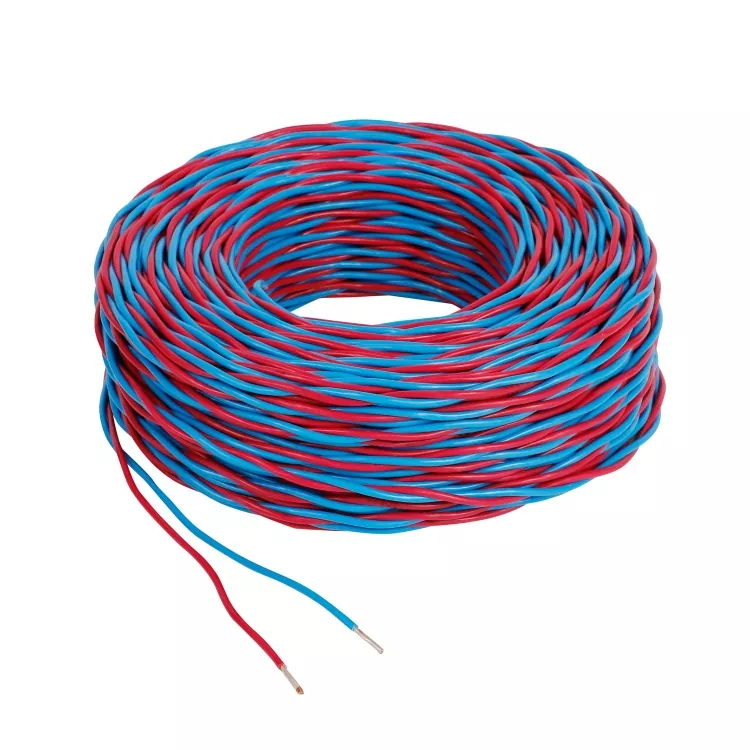

Twisted Flexible Cord

As an experienced supplier and factory, Yilan Cable produces Twisted Flexible Cord with standard two-color combinations such as red, blue, yellow and green. The rated voltage is 300/500V and the long-term temperature resistance is 70°C. Its unique stranded design can effectively reduce electromagnetic interference, especially suitable for fire alarm, smart home wiring and internal connection of electrical appliances.

Specifications

Product feature

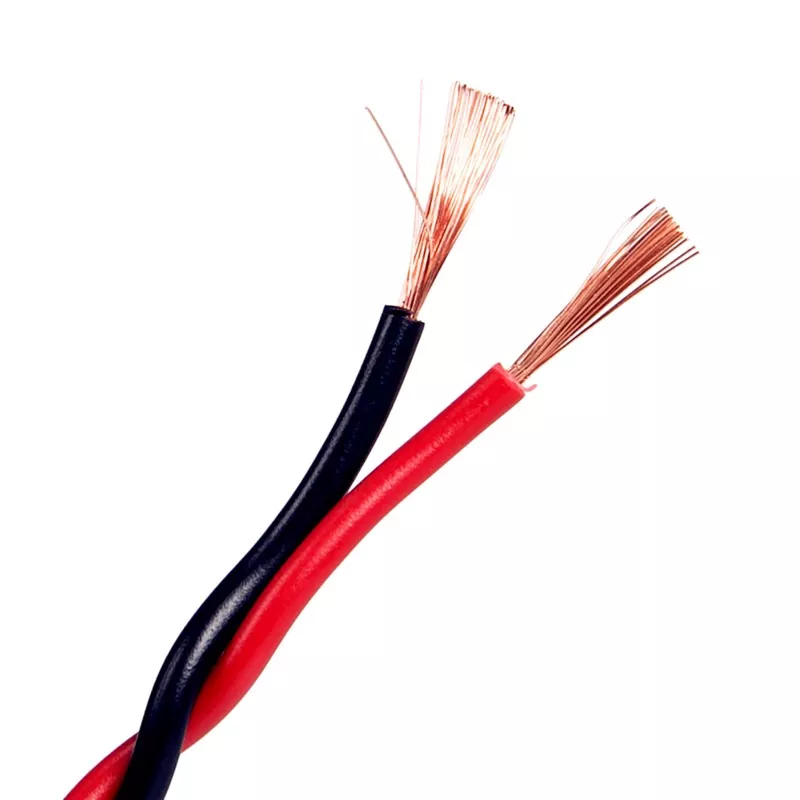

1. Flexible Core: The conductors are made of strands of thin, oxygen-free copper wire, which makes the Twisted Flexible Cord so flexible that it can be easily threaded through tubes, bent in tight spaces, and not easily broken over and over again.

2. Two-core stranding: Two insulated cores are twisted together at a certain pitch. This design has two advantages: one is to prevent the use of physical wiring errors; the second is to offset part of the electromagnetic interference, so that the signal transmission is more stable.

3. Safe Protection: Each core wire is PVC insulated to provide basic electrical insulation and a certain degree of heat (-15 ° C to 70°C) and corrosion protection.

4. Stable signal transmission: Although it is mainly used for low voltage, its twisted structure has a positive effect on interference suppression, so that it has more advantages than ordinary parallel lines in fire alarm bus, smart home signal line and other occasions.

Application scenarios

Smart home and security: intelligent lighting control, building intercom, access control system equipment between the connecting lines.

Interior of household appliances: internal leads and power supply cables of lamps and small appliances.

Low voltage control circuit: signal connection of low voltage and small current in electrical control cabinet.

FAQ

1.Can the Twisted Flexible Cord be used as a power cord for air conditioners and water heaters?

Absolutely not! RVS line rated voltage is 300/500V, conductor is thinner, mainly used for control, signal and small power lighting circuit. Air conditioning and other high-power equipment must use BVR or BV line single core hard wire, and conform to the corresponding current-carrying capacity specification.  Safety first, please be sure to correct selection.

2.What do you need to pay attention to when installing?

(1) Although soft, but it is forbidden to excessive tension, so as not to damage the internal copper wire.

(2) It is recommended to use the line card or cable tie is fixed, avoid dangling shaking.

(3) In the area of the mechanical force damage, should wear tube or use trough protection.

3.Can you offer customized services?

Very good. We can customize special color combinations, specific length packages, printing, etc. to meet your project's individual needs.
