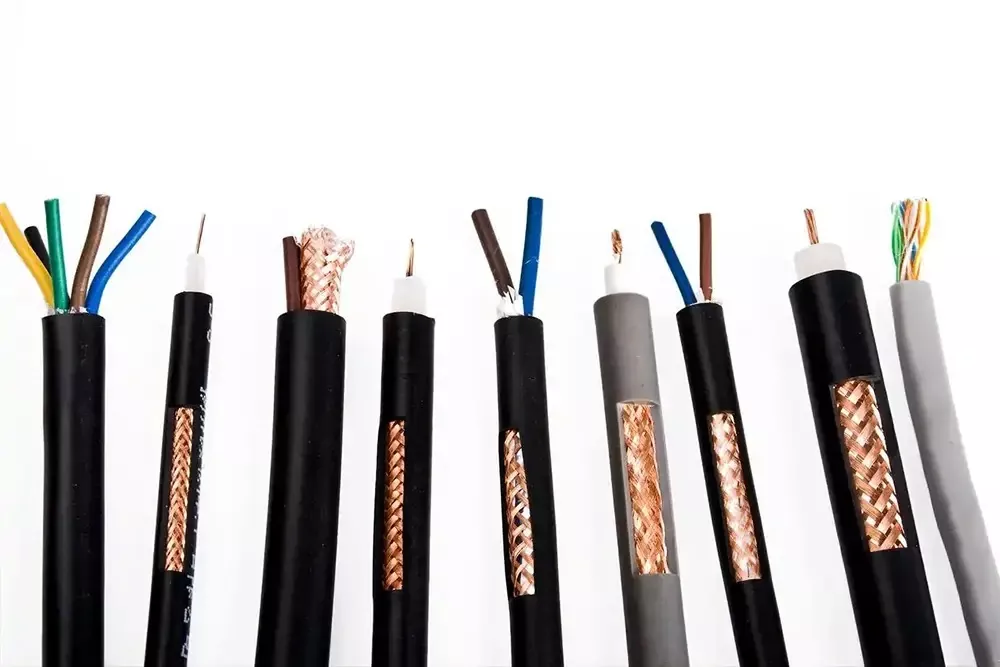

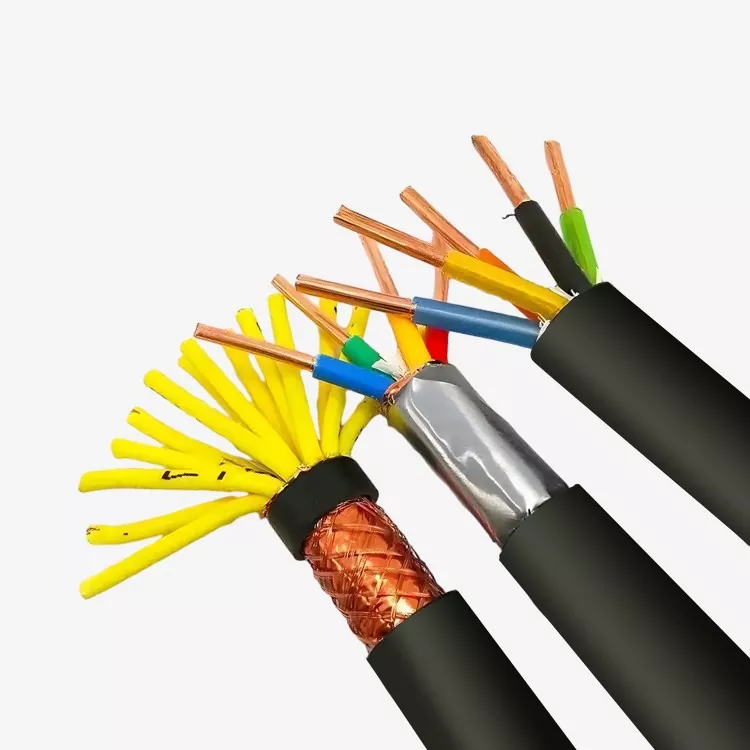

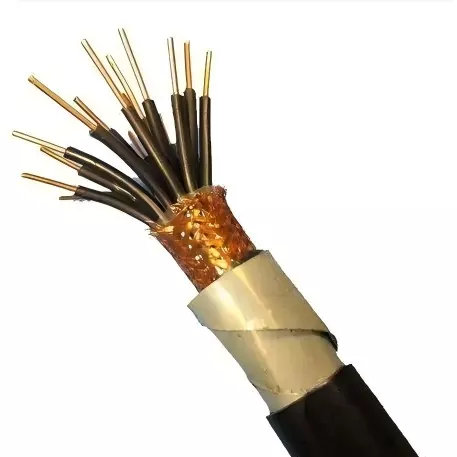

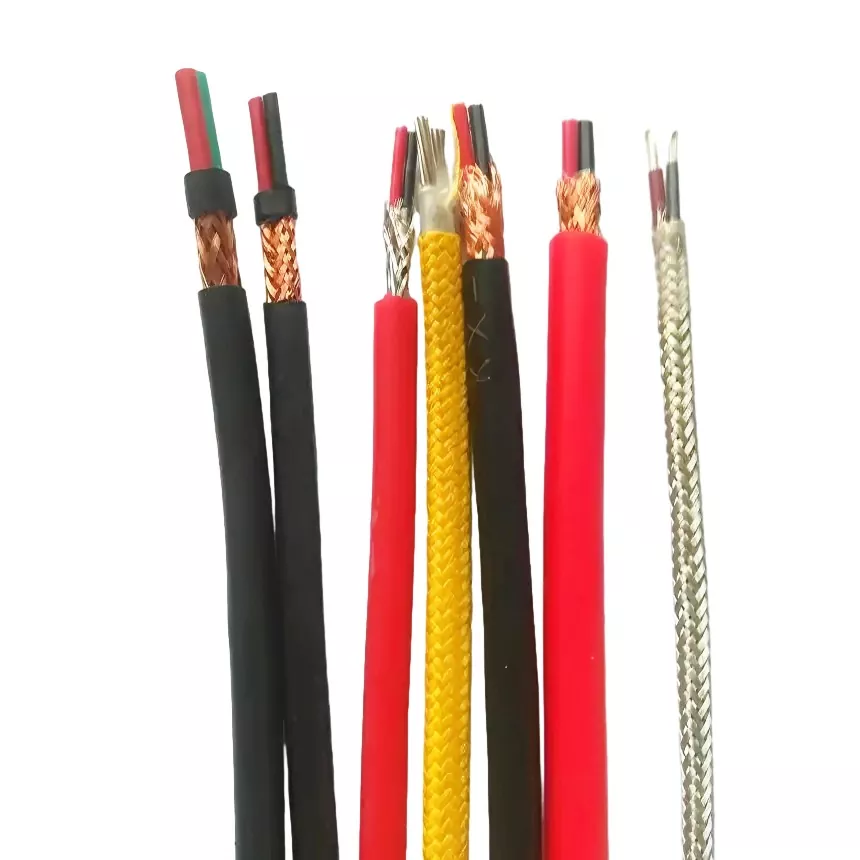

Sheathed Braided Shield PVC Insulated Control Cable Copper Core

Yilan Cable factory's customized Sheathed Braided Shield PVC Insulated Control Cable Copper Core is more than just a cable, it's an integrated protection system designed for the harshest conditions. It uniquely combines the triple benefits of 90°C heat resistance, high density copper shielding and top mechanical protection of steel tape armor to solve complex installation problems that combine electromagnetic interference, physical risks and environmental stresses, ensuring that your core control system signals are crystal clear and operate like a rock.

Product superiority

1. Physical protection: The outermost layer is galvanized steel tape armor, which is a solid barrier against heavy pressure when buried directly, construction errors, and even rodent bites. This layer of armor allows cables to sleep safely in high-risk areas such as tunnels and trenches.

2. Electromagnetic protection: within the armor, is a layer of dense copper wire woven shielding net. Sheathed Braided Shield PVC Insulated Control Cable Copper Core can effectively isolate electromagnetic interference generated by frequency converters, high-power motors and other equipment, prevent accidental damage such as accidental excavation during construction. DCS/PLC cabinets and other occasions with high requirements for signal purity.

3. Heat stable core: Sheathed Braided Shield PVC Insulated Control Cable Copper Core conductor uses XLPE (crosslinked polyethylene) insulation, its long-term resistance temperature up to 90°C, far more than ordinary PVC 70°C. This means that in boiler rooms, steel mills and other high temperature environment or cable intensive laying caused by temperature rise, it can still work stably, longer life.

Application scenarios

1. Strong electromagnetic interference environment

Suitable for use in locations where high intensity electromagnetic fields are present, such as:

Frequency converter room: Effectively isolate high frequency harmonic interference generated by frequency converter.

Power plants and substations: Ensure accurate transmission of control signals in strong electromagnetic environments.

Rail Transit: Meet the anti-interference requirements of subway and railway signal and control systems.

2. Where direct buried laying is required

Designed to withstand external mechanical stresses and potential excavation risks, typical applications include:

Road and Square Crossing: Buried directly under the road or square to resist soil pressure and ground loads.

Industrial park: Direct burial laying shall be carried out in the factory area to prevent accidental damage such as accidental excavation.

3. Explosion-proof or high safety requirements

Its robust construction and protective properties make Sheathed Braided Shield PVC Insulated Control Cable Copper Core suitable for industries with stringent safety standards:

Petrochemical system: Instrument and control circuits used in environments where flammable and explosive gases exist.

Underground coal mine: Meet the dual requirements of explosion prevention and mechanical protection for equipment control in mine.

Other high-risk environments: Suitable for any industrial control system requiring high-reliability explosion-proof measures.

4. Humid and corrosive environments

Cable armor and outer sheath provide good physical and chemical protection for:

Tunnels and cable trenches: Resistant to prolonged humidity and possible chemical corrosion.

Basement: Stable operation in poorly ventilated, high humidity environments.

Other similar environments: Such as sewage treatment plants, coastal facilities and other places where corrosive media exist.
