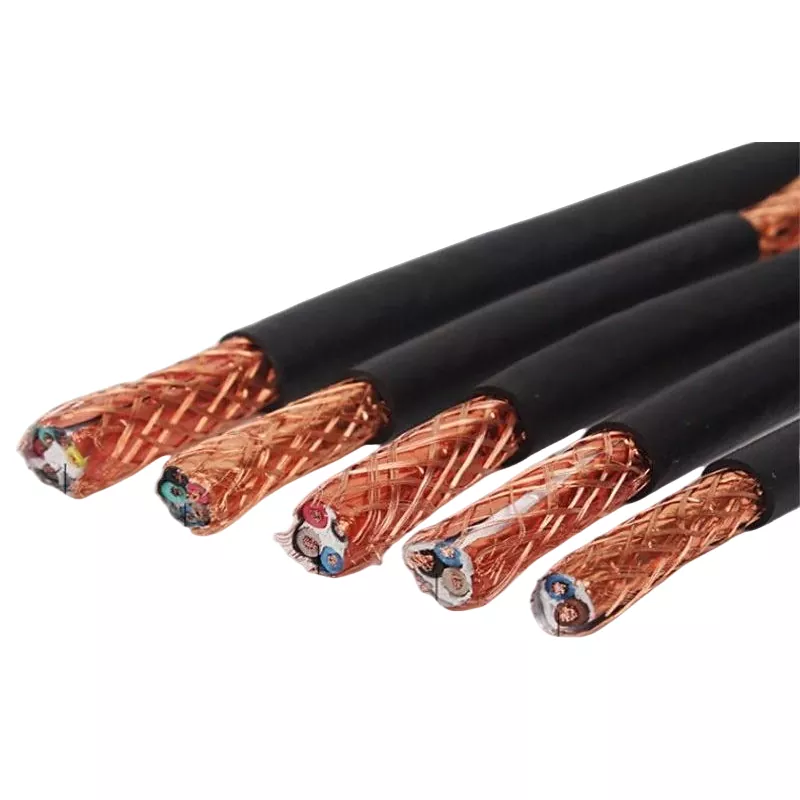

Copper Wire Braid Shielded PVC Control Cable

Yilan Cable not only offers standard Copper Wire Braid Shielded PVC Control Cable, but can also provide customized services according to your specific application (such as close to frequency converters, large motors or complex power distribution rooms), ensuring that every meter of cable can play a shielding effect in your critical projects and protect your control signals accurately.

Why is our Copper Wire Braid Shielded PVC Control Cable different?

Compared with unshielded cables, Copper Wire Braid Shielded PVC Control Cable has a built-in high density tinned copper wire braided shield. This layer of shielding net can effectively absorb and guide external electromagnetic interference, providing a pure and safe channel for internal signal transmission, ensuring accurate transmission of PLC commands, sensor data and instrument signals.

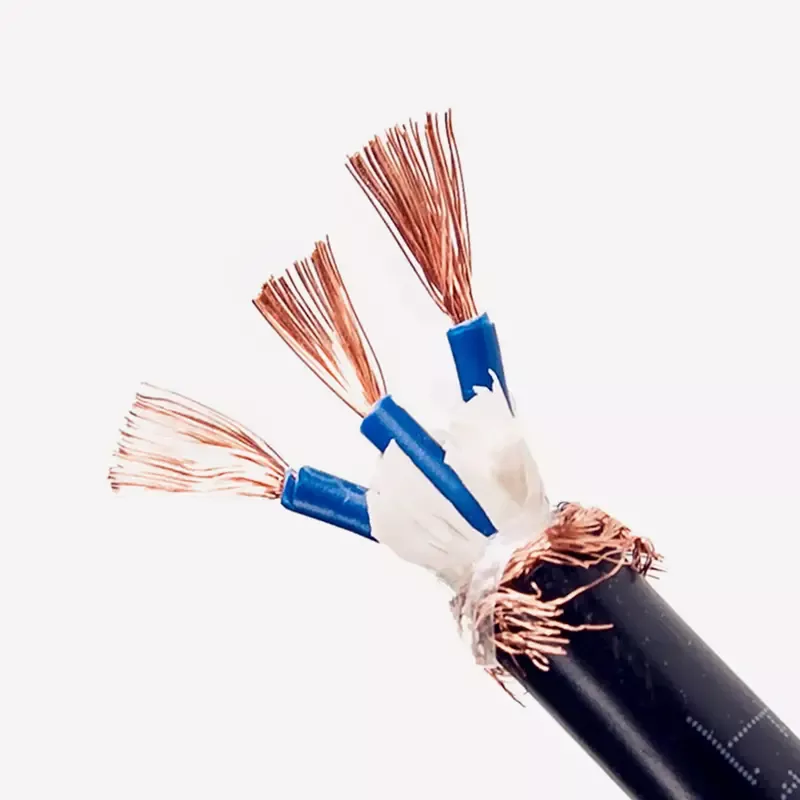

Product structure

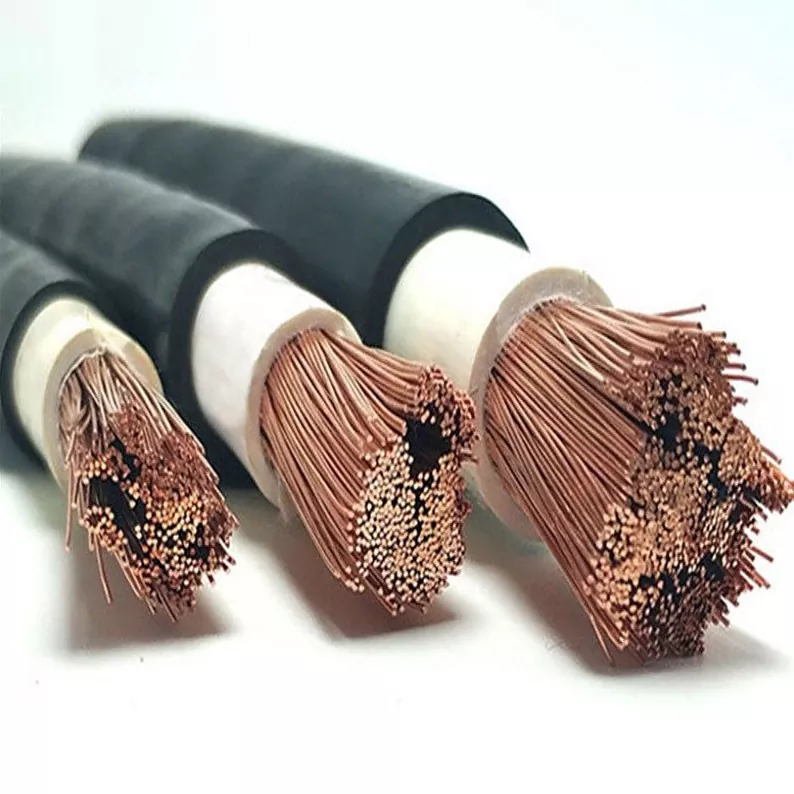

1. Conductor: Multiple strands of fine and soft copper wires are twisted to ensure the flexibility and excellent conductivity of the cable, making CE-certified Copper Wire Braid Shielded PVC Control Cable easy to install and lay on site.

2. Insulation layer: High quality PVC insulation material, providing good electrical insulation performance and voltage resistance

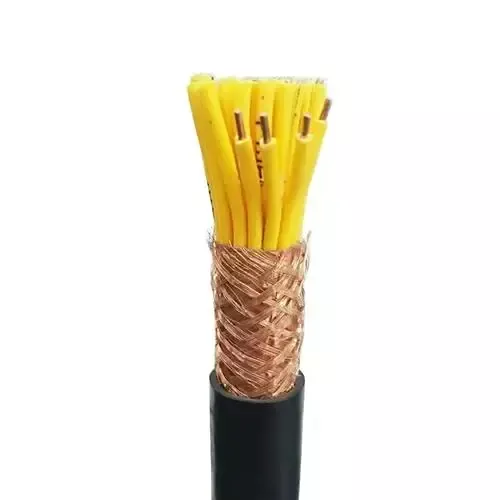

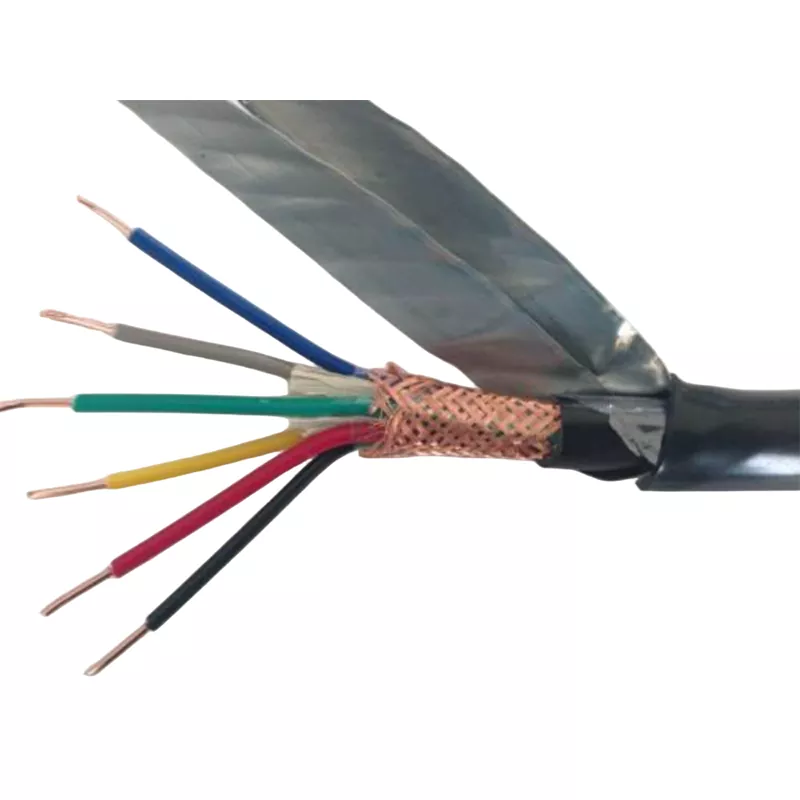

3. Shield (core): Tinned copper wire braided shield with high coverage (usually ≥85%). Tin plating not only enhances the oxidation resistance and corrosion resistance of copper wire, but also makes the connection between shield layer and ground terminal stronger and better conductivity.

4. Sheath: Tough PVC outer sheath, providing excellent wear, oil, weather and mechanical impact resistance protection, suitable for long-term use in harsh industrial environments.

5. Rated voltage: 450/750V, long-term allowable operating temperature of 70°C, to meet the needs of most industrial control scenarios.

Application scenarios

1. Frequency converter and motor nearby: Frequency converter is a strong interference source, its output of high-frequency harmonics will seriously interfere with the surrounding cables, the use of high quality Copper Wire Braid Shielded PVC Control Cable is necessary.

2. Automatic production line and PLC control system: In the dense wiring control cabinet, bridge, to prevent crosstalk between various signal lines.

3. Instrument and computer measurement and control system: Shielding is very important for analog signals (such as 4- 20mA), thermocouple signals and other low-level precision signal transmission.

4. Power distribution rooms and industrial areas with strong electromagnetic fields: Prevent interference of power cables to control cables.

5. Fixed installation occasions requiring certain flexibility and not extreme harsh environment: Such as internal wiring of machine tools, packaging machinery and other equipment.

Note: Unlike armored cables (such as KYJV22), which focus on mechanical protection, Copper Wire Braid Shielded PVC Control Cable has a core value of electromagnetic shielding. If your environment has both strong mechanical shock and electromagnetic interference, contact us to discuss a composite solution.
