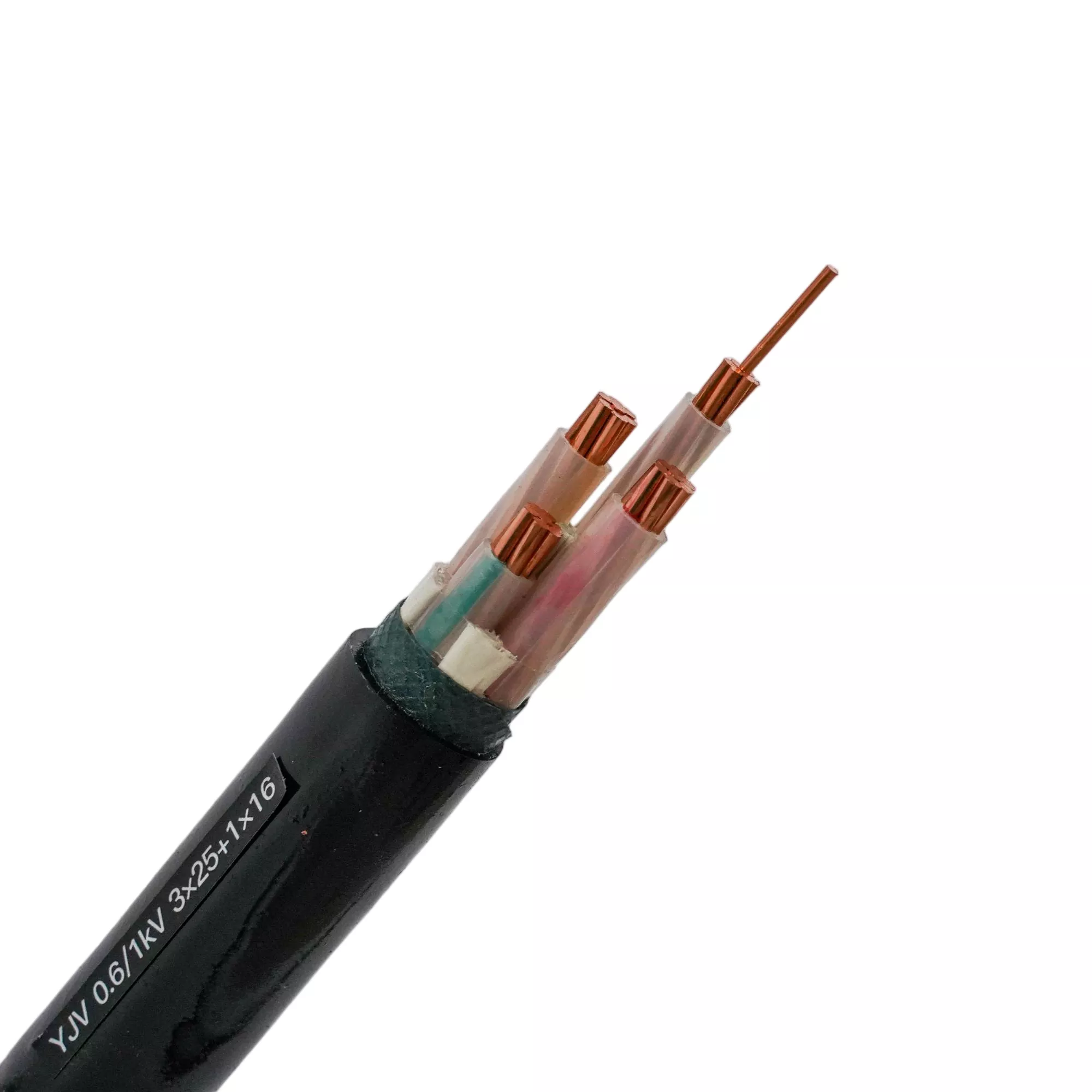

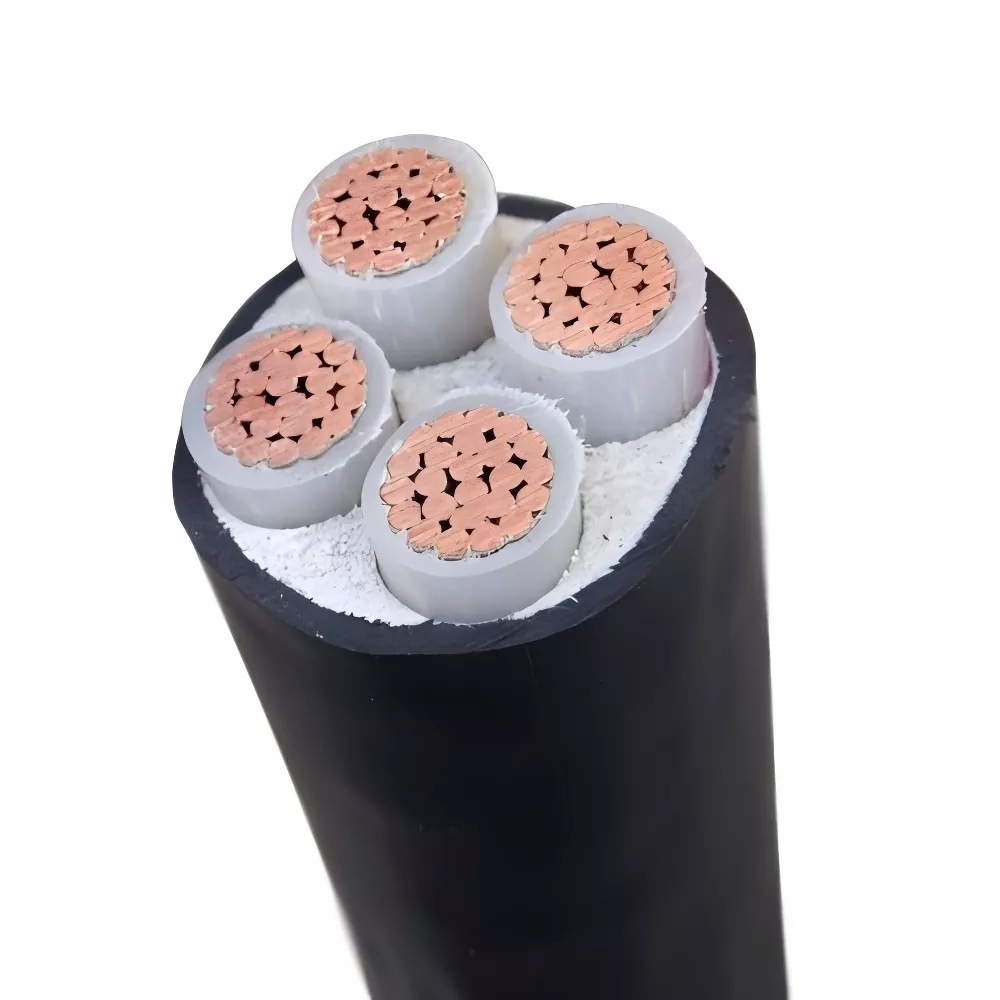

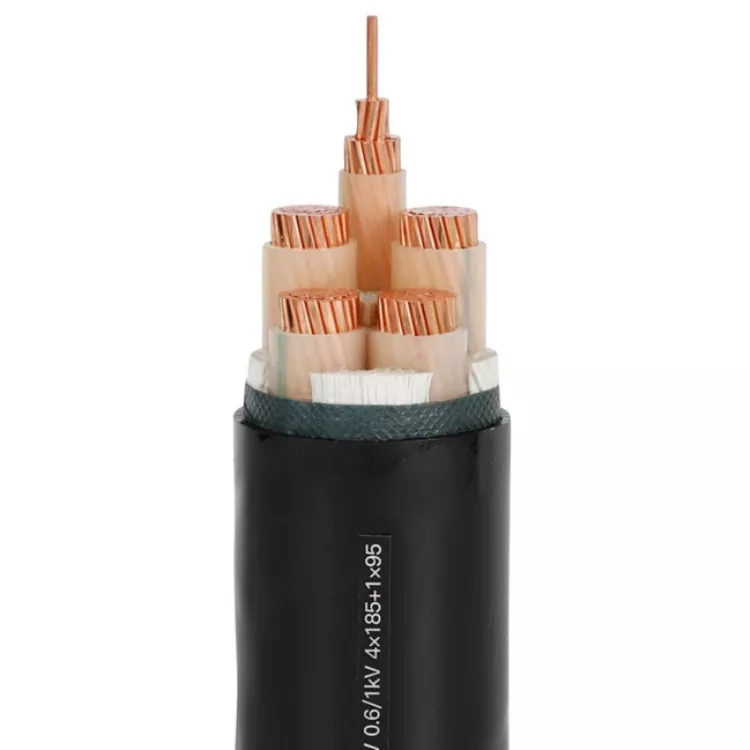

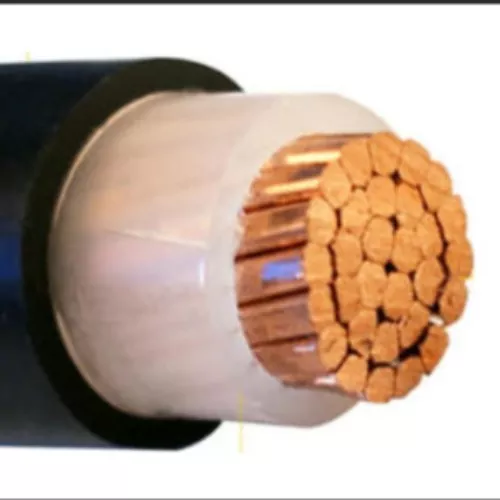

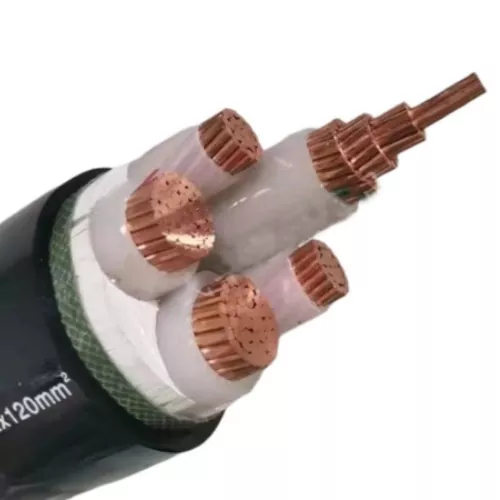

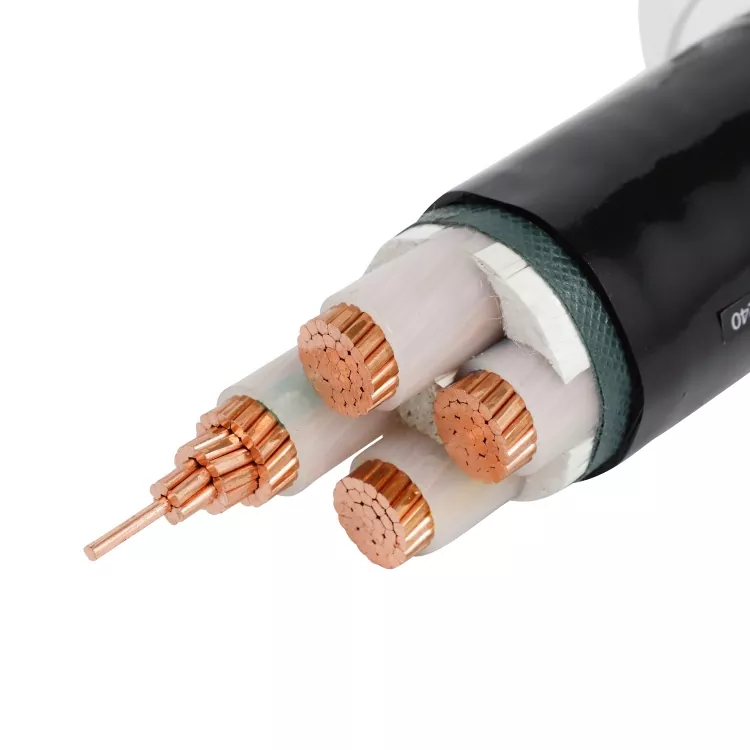

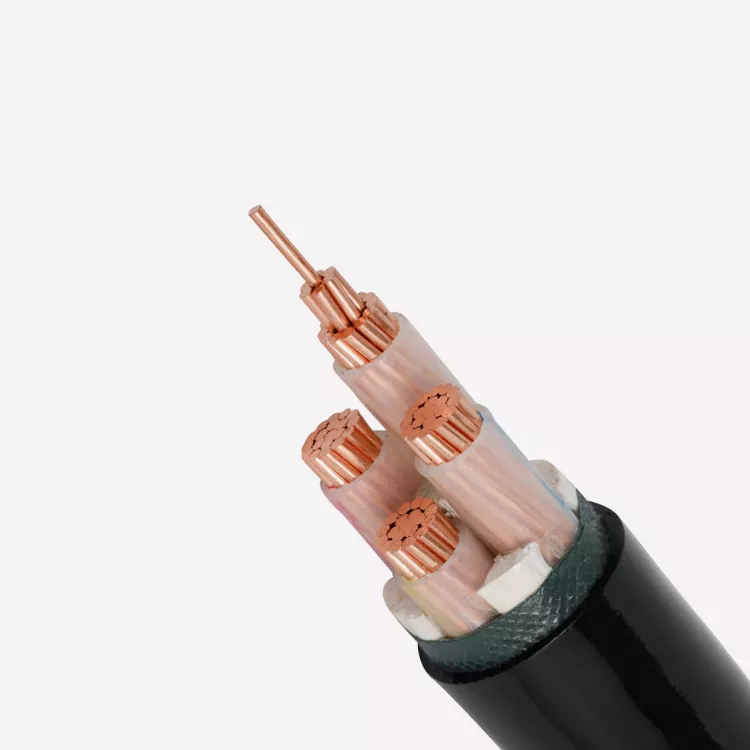

XLPE Insulated PVC Sheathed Power Cable

As a professional cable manufacturer in China, Yilan Cable factory's high quality YJV XLPE Insulated PVC Sheathed Power Cable can provide higher current carrying capacity, longer service life and excellent anti-aging performance, adapting to various fixed laying requirements from indoor distribution to outdoor direct burial, from ordinary environment to complex working conditions

YJ: stands for crosslinked polyethylene (XLPE) insulation, which has excellent thermal stability and electrical insulation properties.

V: stands for PVC sheath, providing good mechanical protection and corrosion resistance

Product feature

1. Good heat resistance

Durable XLPE Insulated PVC Sheathed Power Cable has a long-term allowable working temperature of 90℃ and a short-circuit resistance temperature of up to 250℃, suitable for high-load environments.

2. High electrical performance

Low dielectric constant and dielectric loss, effectively reduce power transmission loss, improve system energy efficiency

3. Good adaptability to machinery and environment

PVC sheath has excellent tensile, compressive and impact resistance, suitable for direct burial, pipeline, cable tray and other laying methods.

Chemical corrosion resistance, oil resistance, water resistance, UV resistance, adapt to complex indoor and outdoor environments

4. Security and environmental protection

Conform to a number of standards, implement the national standard GB/T 12706, some models can choose halogen free low smoke flame retardant (WDZ-YJV), meet strict fire protection requirements.

Common specifications and voltage classes

Installation considerations

Bending radius: Laying minimum bending radius is not less than 15 times the XLPE Insulated PVC Sheathed Power Cable diameter (multi-core), to avoid damage to insulation.

Ambient temperature: Laying temperature is recommended not lower than 0°C, low temperature environment to preheat.

Terminal sealing: Cable terminal must be strictly sealed to prevent moisture intrusion.
